Bold statement; Power cord can change your sound like nothing else.

Discussion in 'Working with Sound' started by Von_Steyr, Feb 9, 2018.

  1. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    Read an article how changing power cords on older consoles changed the console tone like nothing else.
    Four guys talking about how cables and power cords affect your sound.

    Are your cables changing the sound of your music? We ask Rashad Becker, Ena, Stereociti and Toshihiko Miyoshi to give their thoughts on this controversial issue.

    Miyoshi says that changing the power cables for your computer and audio interface is the simplest way for producers to quickly perceive how power changes the sound. Hearing the differences between cables requires listening to the same track through various brands in a controlled listening environment. An awareness of your biases as a listener is an equally important factor.

    "It used to be that the speaker cable was the most replaced cable for musicians and DJs. But with studios moving toward recording systems based on digital audio workstations (DAW), the power cable started becoming the main point of attention. If you wanted to change the cables in the signal path of a studio recording system, it was necessary to replace dozens of cables connecting each of the devices—with a power supply, you could change the sound of the entire system just by replacing one aspect."



    Cool article.
    https://www.residentadvisor.net/features/2974

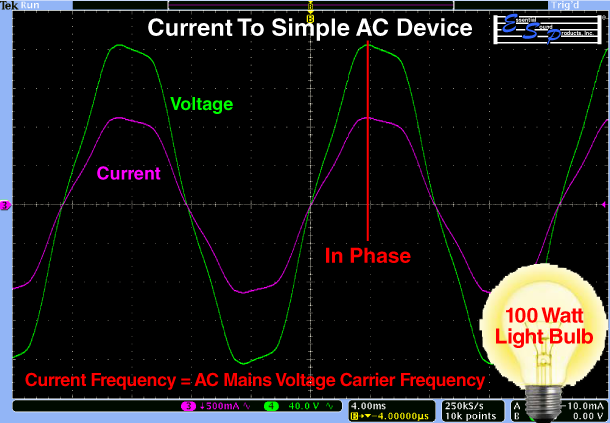

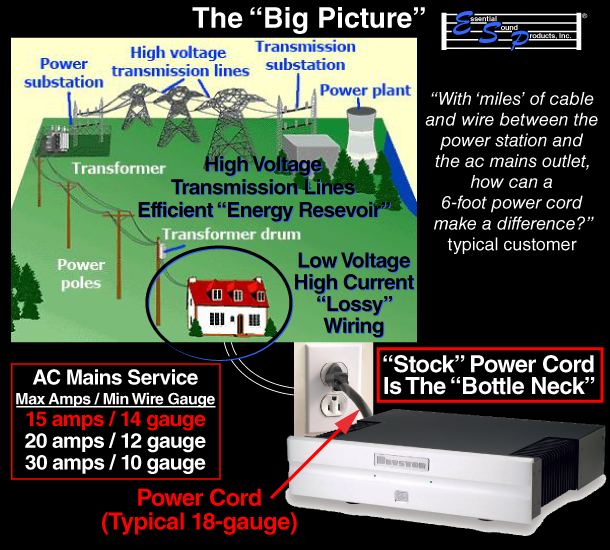

    Why power cords matter;
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    https://www.essentialsound.com/power-cable-technology.htm

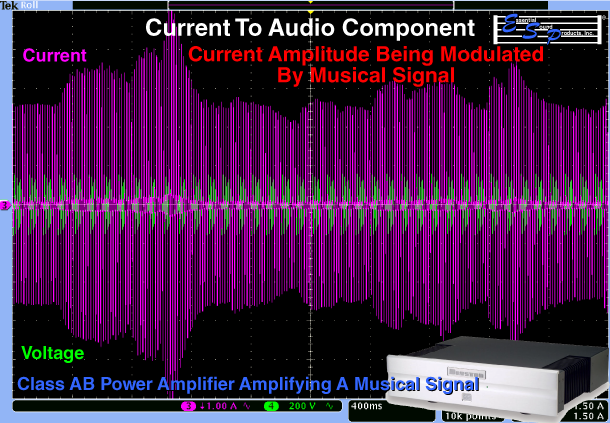

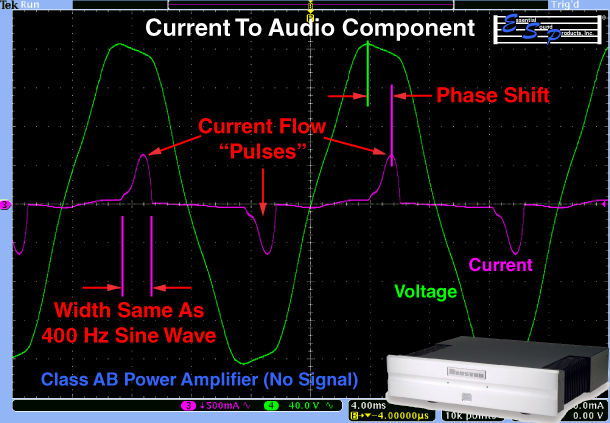

    High transient current flow to the component power supply
    is key to optimal performance.

    To the extent that current flow modulations are restricted or delayed, the power supply cannot meet demand to accurately process the musical signal. This distortion is not comprehended by existing performance metrics. However, it is clearly audible and is characterized by sound quality issues including dynamic compression, harsh midrange and treble transients, and a lack of bass extension.

    Last edited: Feb 9, 2018
    • Funny Funny x 3
    • Like Like x 2
    • Agree Agree x 1
    • Interesting Interesting x 1
    • List
  2.
  3. Pipotron3000

    Pipotron3000 Rock Star

    Joined:
    Mar 13, 2013
    Messages:
    904
    Likes Received:
    365
    Nothing stand an A/B test. And you can find a bunch of those A/B tests all over the net, for at least 10 years.
    Summary : pure bulssh*t Scientology-like arguments.

    The funniest ? "This distortion is not comprehended by existing performance metrics"
    Something exist...but NO ONE can prove it, even us. Just listen and trust your human brain :rofl:

    • Like Like x 6
    • Agree Agree x 1
    • List
  4. Willum

    Willum Platinum Record

    Joined:
    Jun 13, 2011
    Messages:
    593
    Likes Received:
    272
    Fuck, is it April 1st already, doesn't time fly.

    • Like Like x 3
    • Funny Funny x 2
    • List
  5. The-RoBoT

    The-RoBoT Platinum Record

    Joined:
    Jun 16, 2011
    Messages:
    741
    Likes Received:
    225
    Location:
    Plan 9
    Below is some interesting read, again don't over read into anything too much.

    [​IMG]
    Every audiophile who has experimented with better power cables has heard the performance advantage they offer. Indeed, the amount of improvement can be astounding, often transforming a system from good to amazing. As audiophiles, we trust our ears but it’s hard to understand how replacing just one short link in a long chain of the power delivery system can have such a dramatic impact. The following article is intended to answer those questions.

    Shunyata Research has become a dominant force in the power delivery field. Owner and designer, Caelin Gabriel is clearly one of the luminaries in the industry. His products have, in many ways, changed the way people think about power cables and raised the bar of performance. Shunyata cables have established themselves among audiophiles and industry professionals as state of the art. The list of manufacturers and professionals that use Shunyata cables is impressive, including the likes of Sony Music New York, Sony Music Japan,
    Vienna Philharmonic, Sky Walker Studios, Crest National Studios, Astoria Studios, Audio Research, Wilson Audio, BAT, Meridian, VTL, Bel Canto, Halcro, to name just a few.


    To follow is a response from Mr. Gabriel that appeared in an on line forum addressing question why power can be such an influential addition to a system.




    Introduction: “There are a lot of misconceptions about power transmission and power quality that make it difficult for some people to understand why a power cord makes a sonic difference. The first question is – do power cords make any difference at all? There is no sense in talking about theories of operation if we can't agree that there is an audible effect. Most of the thousands of people that use our power cords started out as skeptics and have answered that question for themselves and have found that power cables and power conditioners can have a profound impact on performance. And no - I do not care to debate with people that have not done the simplest of tests about whether power cords work or not. The only cases where a high quality cord does not have significant effects is when it is used with a poor quality power conditioner that acts as a high impedance to instantaneous current flow. “

    Misconception #1: AC Power is like water coming from a large power tank, flowing through several 10s of feet of power hose into a component. This implies that the component is at the end of this system.

    Answer: “Actually, the component sits between two power conductors: the hot and the neutral. AC power oscillates (alternates) back and forth at a 50-60 Hz rate. So power does not pour into the component at all. The component's power supply is within a complex network of wires and connectors. ALL of the wire and connectors can and do affect the performance of the component's power supply.”

    Misconception #2: AC power can be contaminated just like water in a hose. This implies that once the water is contaminated at some point up stream, that is must be cleansed before it arrives at the audio component.

    Answer: “As stated in #1, the component is not at the end of the power hose. It is between two power hoses and the current is oscillating back and forth. Further, current is not like water at all. Electrons cannot be contaminated. There are two aspects to power transmission: the electromagnetic wave and the current flow. The current itself cannot be contaminated but the electromagnetic wave can be modulated with other frequencies. We usually call these other frequencies noise or Electromagnetic Interference (EMI). Within the various parts of a power circuit there may be EMI in certain parts that is not present in others. Electromagnetic energy can be transformed or redirected to lessen their effects.

    "Some power cords use capacitors, inductors, or ferrites in an attempt to control the electromagnetic fields around the audio component. The success of such an approach is completely dependent upon the specific design and the reactance of the power supply of the component to which the power cable is attached.”

    Misconception #3: There is up to a hundred feet of wire in the walls, so the last 6 feet of power cord can't possibly make any difference.

    Answer: “The power cord is not the last 6 feet, it is the first 6 feet from the perspective of the component. As stated in #1 the local current and electromagnetic effects directly affect the sonic performance of the component.”

    Misconception #4: There is a tremendous amount of electrical interference and EMI coming from outside the home that we need to protect our equipment from. This implies that we need some sort of power conditioner or filter to protect the equipment.

    Answer: “Most of the EMI that affects the audio quality of a system is generated by the audio components themselves. Electromagnetic waves that traveling through space dissipate in power at the square of the distance from the source. Further, very high frequencies that propagate through the power circuit do not survive for long. Power lines present a high impedance to MHz and GHz signals due to the relatively high inductance of power lines.

    "A primary source of audible sonic degradation is caused by the power supplies in our audio/video components. Most components use FWBR (full wave bridge rectifier) power supplies that generate an incredible amount of transient noise when the rectifiers switch off. The design of a power cable can significantly affect the reactance of these signals within the power supply. The power cable is effectively part of the primary winding of the power transformer. The transition between the various metals used in a power cable and its connectors can cause electromagnetic reflections and diode-like rectification of the noise impulses as they propagate away from the power supply. If the power cable presents a high impedance to these signals they will be reflected back into the power supply where they will intermodulate, thus increasing the high frequency noise levels of the component. Most power supply filters are ineffective at blocking very high frequency noise components and much of it is passed through to the DC rails. The sonic effects of this include: high background noise levels, blurred or slurred transients and a general lack of clarity and purity of the sound or visual image.”

    Misconception #5: There is some sort of conspiracy among audio designers that keeps them from producing a "proper" power supply that is not affect by power cable quality.

    Answer: “This concept is like saying that if a speaker where properly designed, you wouldn't need to use a good quality speaker cable. PowerSnakes have been tested with the most modest of mid-fi equipment and the most exotic state of the art components. We have yet to find a component that cannot be improved by replacing the power cord.

    "As long as power supply design is based upon FWBRs or switching supplies, the power cord will always be significant.”

    Misconception #6: High-end power cords just increase the circuit capacitance acting as a high-frequency shunt

    Answer: “There are some power cords that ARE designed this way. Some even insert capacitors within the cable to further increase capacitance. This approach has some positives and many negatives including the reactive interference with the way many power supplies are designed.

    "Capacitance alone cannot account for the differences in a power cord's performance. There are some high-end power cords that are very effective that have virtually immeasurable levels of capacitance. These cables are usually designed around hollow tubes with the conductors inside. The conductors are several inches apart and cannot significantly affect the capacitance of the power circuit.”

    Misconception #7: Power cords are just like speaker cables; always the shorter the cable the better.

    Answer: “Some speaker cable designers would argue that a speaker cable below a certain length is not better. We will let them address the issue if they desire.

    "A speaker cable conducts an audio signal from the power amplifier to the speaker. The distance is quite small, on the order of a couple of feet to several feet. The quality of a speaker cable is determined by how well it can transmit the signal from the amplifier to the speaker without alteration.

    "A power cable on the other hand is not transmitting a signal. It is conducting A.C. power and its sonic superiority will be determined by its ability to deliver current (steady-state and instantaneous) and its ability to deal with the EMI effects of the components to which it is attached.

    "Since a power cord is composed of a hot and neutral wire that the component sits between, a change in the length of the cord will increase the size of the "buffer" around the component. In general, I would not recommend a power cord that is shorter than 3 feet or 1 meter in length. But subtle degrees of audio performance are not the only consideration when putting together an audio system. Esthetics is also important especially when the system is located in a beautiful home. I just point out the performance differences so that people can make an informed decision when determining the optimum length for their cables.

    "There is much more that can be discussed about power delivery but for the sake of brevity I'll cut it short at this point. On a personal note I would like to say that I was an audiophile long before I was a manufacturer of audio products. Before Shunyata Research I designed high speed networking devices and can tell you that there is a lot more money to be made in the computer industry. Like many of the manufacturers of high-end audio components, I design my products for myself and for the love of music. If other people like what I have created - great. If after trying our product you prefer another - great. There is a wide diversity of preference and subjective perception among individuals. Thank goodness there is also a wide diversity of manufacturers that create products to serve a variety of tastes.”

    Caelin Gabriel
    Shunyata Research Inc.


    Addendum:

    “Before we produced our first power cord, we did extensive testing of the audible effects of a variety of devices and materials associated with power transmission. We created many jigs and test apparatus that allowed us to test wire types, dielectric materials, connector contacts, dampening materials and a variety of transformers, chokes, coils, ferrites, capacitors, triacs and diacs. After 3 years of testing, we concluded that just about anything and everything that is inserted in or around the electromagnetic field of a power circuit has an audible effect. Some of the effects are quite small and are relatively insignificant. Others are dramatically profound and sometimes surprising in their behavior. Obviously we are not going to "give away the farm" and discuss all of our findings, but there are some very basic observations that I can share with you.

    "First would be that wire type and size in a power cord is highly overrated. Every wire type (I am talking about the metal itself) has a specific sonic characteristic. Silver, copper, brass, gold and others all "sound" different. The difference in sound is not related to conductivity capacity because we adjusted the sizes during testing to account for this. Each of the metal's inherent "sonics" can be ameliorated by careful adjustment of the other materials used in the construction of the final cable. We have a warehouse full of various prototype cables that never made it to production. Some of these use a relatively small wire size of ~18ga, that sounds surprising full in the bass. Intuitively, you might think that a small wire would sound thin in the bass region. This is not always the case. Conversely, we have some cables with wire as large as 1gauge that sound powerful in the bass but are also flabby and irregular sounding. So, just increasing the wire size is not the easy answer that some might think.

    "Most of what I have to say here are my "conclusions" based upon observation through trial and error testing. Furthermore, there are no perfect components and there are no perfect parts. Everything is relative and the designer must weigh the sonic value of each part when designing a product. Our philosophy is to create a product that is a faithful musical component as opposed to striving for excellence in any single performance area.

    "Our tests with coils and chokes indicate that (in general, with exceptions) that any coil or choke that is placed in-line with the power circuit is harmful to dynamics. Many of them will also induce a subtle smearing or blurring of transients. This is naturally dependent upon the power supply design of the unit that the coil is used with. Coils and chokes are necessary in most components and I prefer "single layer wound" types such as the foil designs. Cost of production will always mitigate against the use of these types of coils due to the expense. We definitely do not believe in placing coils or capacitors within a power cable. These devices belong in the component or in a dedicated power conditioner.

    "Many components use a power inlet IEC that has an integrated "L" or "pi" filter. The quality of these devices varies dramatically. Generally speaking, the more capacitors and inductors that you have in a circuit, the more complex the dynamic interactions will be between the devices. This will also make the component they are used in more reactive and the possibility of negative sonic effects increase. Multiple filter networks can resonate and generate unintended results that have subtle but audible ringing / pinging sounds. Many of these IEC packages were created for office and computer products and are required to pass certification tests for EMI emissions. All I can say is that what is good for a fax machine is not necessarily good for a pre-amplifier.

    "Shielding can be a two-edged sword. On one hand, it can reduce radiated fields from impacting other components. On the other hand, the shielding may induce re-radiated fields onto the cable or component that it is being used in. Sometimes the cure may be worse than the illness. As always - you must know your materials and tools and apply intelligence with a small dose of intuition to create a world class product. There is no silver bullet and there is no rote formula that works in all cases. There is just hard work, occasional inspiration and lots of testing.”

    Caelin Gabriel
    Shunyata Research Inc.




    "NOT EVERYTHING THAT CAN BE COUNTED COUNTS, AND NOT EVERYTHING THAT COUNTS CAN BE COUNTED."
    - ALBERT EINSTEIN.

    https://www.gcaudio.com/tips-tricks/why-power-cables-make-a-difference/

    Hope this reading will break the boredom for some of you, in the meantime i'm off to study the Flat Earth :hahaha: :hifive:

    • Like Like x 2
    • Funny Funny x 1
    • List
  6. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    @The-RoBoT

    You have access to expensive consoles, swap some power cords and report back.
    There are probably some from the 60s and 70s in the storage room.
    Show these 1min loopers how its done.

    • Funny Funny x 2
    • Agree Agree x 1
    • List
  7. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    Its real to me dammit!


  8. amadeusex

    amadeusex Newbie

    Joined:
    Nov 2, 2017
    Messages:
    5
    Likes Received:
    1
    Ethan Winer's Audio myths workshop video on youtube explains everything.
    Just watch it.

    • Interesting Interesting x 1
    • List
  9. Blorg

    Blorg Producer

    Joined:
    Jan 1, 2018
    Messages:
    264
    Likes Received:
    77
    This is what Ali ibn Saad, Serezhka Govnovski and Guy Who Sleeps in Our Lobby and then the whole place reeks of piss because you just buzz people in, like it's too much frickin' trouble to say "who is it" like a responsible human being ... where was I? Oh yeah, importance of quality power cords in regulated switching power supplies. It has been raining a lot recently. Quick thunderstorms and flash floods...lightning at night and fear in the afternoon. People are worried about electricity.

    Nobody feels safe. Fires burst out on dry hillsides, raging out of control, while dope fiends dance in the rancid smoke and animals gnaw each other. Foreigners are everywhere, carrying pistols and bags of money. There are rumors about murder and treachery and women with no pulse. Crime is rampant and even children are losing their will to live.

    The phones go dead and power lines collapse, whole families plunged into darkness with no warning at all."
    --Diana Moon Glampers

    • Agree Agree x 1
    • Creative Creative x 1
    • List
  10. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    Well, good power amps deliver clean balanced power on the whole frequency range, there is a reason there are such huge differences in pricing.
    Power cords play a role as well, not as big, but noticeable.
    People who dont believe in differences between audio cables probably shouldnt read this anyway.

  11. Andrew

    Andrew AudioSEX Maestro Staff Member

    Joined:
    Oct 24, 2011
    Messages:
    1,694
    Likes Received:
    896
    Location:
    Between worlds
    One of the most nonsensical myths with zero basis in reality in the world of audiophoolery.

    Last edited: Feb 10, 2018
    • Agree Agree x 5
    • Like Like x 1
    • Disagree Disagree x 1
    • List
  12. spyfx

    spyfx Audiosexual

    Joined:
    Sep 12, 2017
    Messages:
    867
    Likes Received:
    728
    • Like Like x 1
    • Winner Winner x 1
    • List
  13. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    I have provided data with this argument. Bold yes, nonsensical, no.

  14. Andrew

    Andrew AudioSEX Maestro Staff Member

    Joined:
    Oct 24, 2011
    Messages:
    1,694
    Likes Received:
    896
    Location:
    Between worlds
    Nonsensical, yes.
    3m of cable, especially with no added filtering will not make any measurable or audible difference.
    Cables with built-in filtering might do something measurable (still not audible) to audio tech with really crappy AC rectifier and filtering stage or abysmal PCB layout. But, that's rather inefficient way of handling such problem - much better would be to redesign the AC staging or to introduce conventional way of handling excessive harmonics - AC lowpass filter in a box.

    Here's some reading:
    http://archimago.blogspot.se/2013/05/measurements-power-cables-for-low-power.html

    • Like Like x 2
    • Agree Agree x 1
    • Interesting Interesting x 1
    • List
  15. fiction

    fiction Platinum Record

    Joined:
    Jun 21, 2011
    Messages:
    974
    Likes Received:
    219
    You guys made me curious. Did an A/B shootout with and without the AC cable.
    Man, what an obvious difference!

    • Funny Funny x 6
    • Like Like x 1
    • List
  16. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    The difference is there, very small, but then again, lets assume this guy has a healthy wiring going/or doesnt receive "dirty" power.
    There was a small difference in the dynamic range.

    Also
    "As is my usual policy, I do not bother measuring high-priced cables"
    How is that a scientific test then. Thats a personal decision that plays a vital role in the outcome of these tests.

    I will test monitors in the 500$-1000$ price range. I dont have 5k-10k monitors available, so i wont bother, but will come to a scientific conclusion.

    Not a proper test.

    Also, from the first article i posted, these produces have a lot more power cables available and probably from several decades ago as well, not to mention, the most expensive ones as well.

  17. Andrew

    Andrew AudioSEX Maestro Staff Member

    Joined:
    Oct 24, 2011
    Messages:
    1,694
    Likes Received:
    896
    Location:
    Between worlds
    @m9cao - Not sure to whom you're referring to, but the truth is - there are documented psychological effects when it comes to audio.
    One of them is McGurk effect and Echoic memory. When you consider how the sound waves propagate in any treated/untreated room, any sort of listener misplacement has the potential to cause audible differences. That is easily one of the explanations for sensing different sonic signature, the other is breaking the human echoic memory capacity, which start to deteriorate after about 0.2s (200ms).
    When it comes to recorded audio (especially digital), there's no magic aura that would be restored by any of these boutique gadgets (AC cables).
    This myth is being proven wrong year after year, test after test, yet for some reason people who cannot explain / lack some level of electrical knowledge still cling to it.

    @Von_Steyr What would change if Archi tested $20,000 AudioQuest/Nordost? How electrically different environment those expensive cables provide that'd change anything relevant?
    It's up to the AC staging and what caps are used there that stabilize the current draw from the mains. Also that'd mean strapping a clean AC inverter with 2% THD would make for similar test conditions.

    Price can make some difference where it matters, not where it's irrelevant.

    Last edited: Feb 11, 2018
  18. Von_Steyr

    Von_Steyr Audiosexual

    Joined:
    Feb 3, 2016
    Messages:
    3,139
    Likes Received:
    2,485
    Location:
    Europe
    The test is inconclusive. Its also based on only three cables, interesting yes, but not enough imo to be taken serious.

  19. Andrew

    Andrew AudioSEX Maestro Staff Member

    Joined:
    Oct 24, 2011
    Messages:
    1,694
    Likes Received:
    896
    Location:
    Between worlds
    Depends what would anyone call conclusive. :no:

    OK, what if I gave you cable which cost $20 and then $1980 budget to improve it, what would you change in it from engineering perspective?

    • Like Like x 1
    • Winner Winner x 1
    • List
  20. nobodyspecial

    nobodyspecial Producer

    Joined:
    Feb 4, 2017
    Messages:
    228
    Likes Received:
    75
    oh wait...... i want softer sound, lets take the white power cable :D

  21. fraifikmushi

    fraifikmushi Audiosexual

    Joined:
    Jul 17, 2014
    Messages:
    1,697
    Likes Received:
    611
    If I paid big bucks for a cable I would hear a big difference, no doubt about it.

    • Agree Agree x 4
    • Funny Funny x 3
    • Winner Winner x 1
    • List
