Blue Cat Audio releases "Connector" Streaming Plug-in (20th January 2022)

Discussion in 'Software News' started by BEAT16, Jan 23, 2022.

  1. BEAT16

    BEAT16 Audiosexual

    Joined:
    May 24, 2012
    Messages:
    6,473
    Likes Received:
    4,602
    [​IMG]

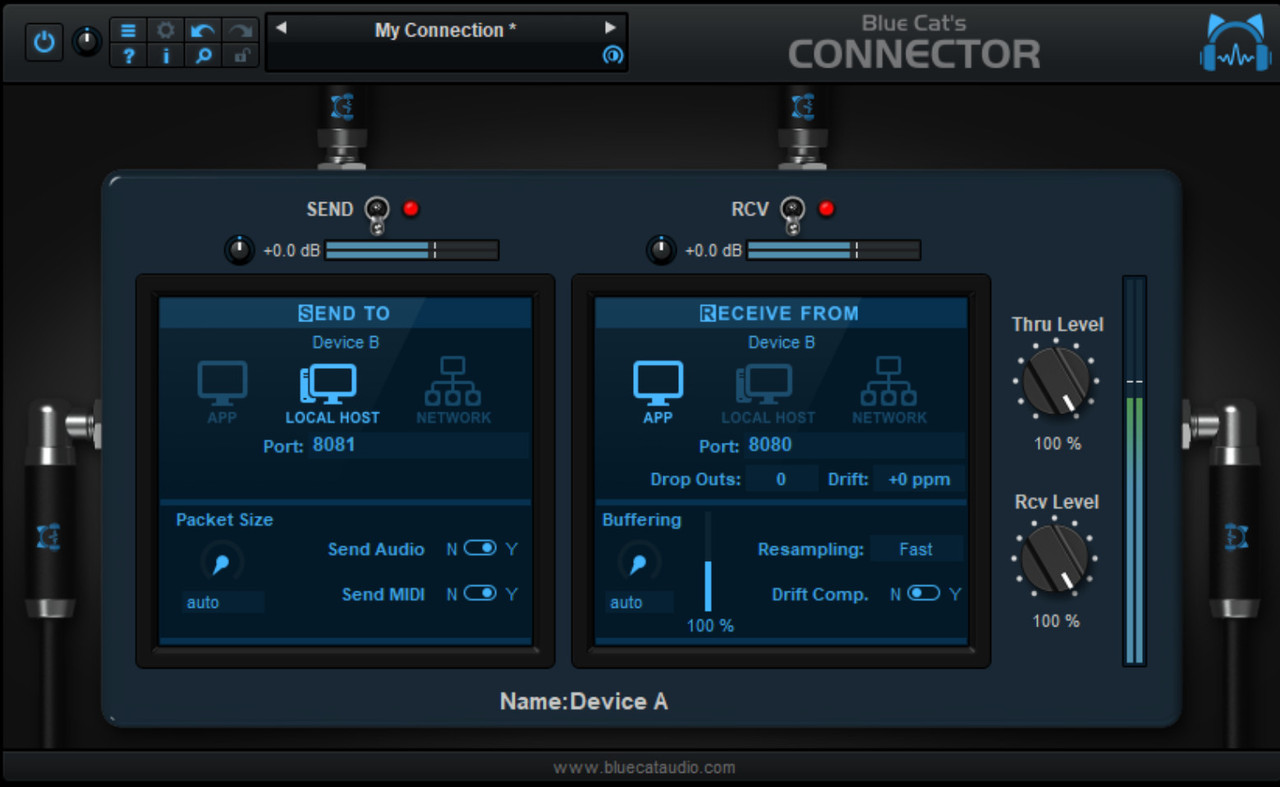

    Blue Cat Audio releases "Connector" Streaming Plug-in (20th January 2022)

    Blue Cat Audio has released Blue Cat's Connector, a new universal connection plug-in that can be used to route audio and MIDI almost anywhere "in the box".

    Also described as a "virtual cable for your virtual studio", Connector can stream audio and MIDI in real time, between any locations that can load plug-ins, inside one or several applications, on one or several machines connected to a network.

    The plug-in offers total control over the streaming to achieve the lowest possible latencies (down to 0 samples, when used in a single application), and its built-in resampling and drift compensation algorithms take care of any potential synchronization issues between hosts for a very stable connection, even when no master clock is available.

    Blue Cat's Connector Main Features:
    • Universal connection plug-in available in VST, VST3, AAX or Audio Unit format.
    • Create your own audio/MIDI routings inside your DAW (feedback loops allowed).
    • Create connections between any audio software on one or multiple computers.
    • Minimal latency, with full control over buffering.
    • Supports multiple sampling rates on a single connection (built-in resampling).
    • Built-in drift compensation.
    • Send and receive back audio/MIDI with a single instance.
    System requirements:

    • Intel or M1 Mac running Mac OS 10.9 or newer.
    • PC running Windows Vista or newer.
    Introduction Pricing: 39 USD/EUR (Reg. 49 / 20% off) until February 20th, 2022.



    www.bluecataudio.com/Products/Product_Connector/

    • Interesting Interesting x 6
    • Like Like x 1
    • Useful Useful x 1
    • List
  2.
  3. peghead

    peghead Producer

    Joined:
    Jan 18, 2014
    Messages:
    214
    Likes Received:
    130
    Very interesting indeed.
    Thank you for the head-up!

  4. jishnu

    jishnu Member

    Joined:
    Aug 7, 2020
    Messages:
    76
    Likes Received:
    19
    There's a similar free plugin called 'reastream' by cockos, might wanna check that out :wink:

    • Like Like x 1
    • Useful Useful x 1
    • List
  5. BEAT16

    BEAT16 Audiosexual

    Joined:
    May 24, 2012
    Messages:
    6,473
    Likes Received:
    4,602
    Cockos - ReaStream v2.36 VST - Network Audio Plugin - Win 64 - Free
    www.kvraudio.com/product/reastream_by_cockos

  6. decksound

    decksound Ultrasonic

    Joined:
    Sep 26, 2016
    Messages:
    57
    Likes Received:
    34
    Good way to turn every other DAW into Reason.

  7. SineWave

    SineWave Audiosexual

    Joined:
    Sep 4, 2011
    Messages:
    3,796
    Likes Received:
    2,911
    Location:
    Where the sun doesn't shine.
    I use ReaStream since it comes with Reaper [newer version than in ReaPack FX]. It works very well [low latency - depends on your network cards and switcher] and it's so easy to configure. Call one "reastream1", 2nd "reastream2" etc. so you can get more than 8 MIDI and audio channels, depending on your local network bandwidth. I'm pretty sure you can get quite a lot with with just 1Gbps cards and switcher. 1 Gbps = 125 MB/s, but there is some network overhead, so you usually get around 100 MB/s.

    24 bit 96KHz Stereo =
    576 KB per second, so you can do your own calculations. :wink:

    24 bit 48KHz Stereo = 288 KB per second.

    However, ReaStream sends 32 bit FP audio, so it's a bit [8 bit more, more precisely :)] more per channel.

    1 ReaStream that sends 8 32 bit audio channels at 48kHz should use about 1.6 MB/s with MIDI and network overhead. That's pretty good, eh? I mean, 10 ReaStreams sending 80 channels use about 16 MB/s. :)

    Last edited: Jan 23, 2022
  8. Xupito

    Xupito Audiosexual

    Joined:
    Jan 21, 2012
    Messages:
    5,918
    Likes Received:
    3,214
    Location:
    Europe
    I tried reastream (the separate ReaPack VST) and couldn't get it to work. Some network permission I guess.
    Reaper's ReaMote worked fine though.

  9. InTheChips

    InTheChips Ultrasonic

    Joined:
    Nov 23, 2020
    Messages:
    59
    Likes Received:
    24
  10. SineWave

    SineWave Audiosexual

    Joined:
    Sep 4, 2011
    Messages:
    3,796
    Likes Received:
    2,911
    Location:
    Where the sun doesn't shine.
    Are you sure you used the right IP numbers? Because that's what happened to me once. I use static IPs, not DHCP. Maybe try static IPs if you haven't already. :)

    You should also be able to browse another computer's files, of course, although if I remember correctly ReaStream uses pure TCP/IP for transmit/receive, no need for netbios and similar MS stuff. I think you have to have UDP enabled, too. Check if your switcher or router has UDP turned off. Also, your firewall may be blocking ReaStream.

    Last edited: Jan 24, 2022
